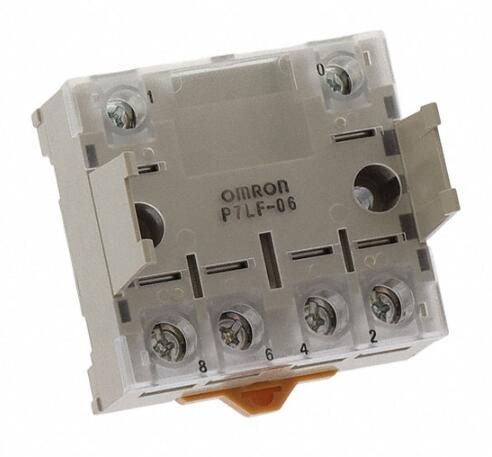

The Omron P7LF-06 is a chassis mount relay socket with 6 positions, rated for 220V and 30A. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The socket is lead free and RoHS compliant. It is available in a package quantity of 120 and has a width of 56.5mm, a length of 55.5mm, a height of 35.2mm, and a depth of 51.5mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron P7LF-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron P7LF-06 technical specifications.
| Current Rating | 30A |
| Depth | 51.5mm |
| Height | 35.2mm |
| Lead Free | Lead Free |
| Length | 55.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, PCB, PC Mount |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 120 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | G7L |
| Termination | Screw |
| Voltage Rating (AC) | 220V |
| DC Rated Voltage | 220V |
| Width | 56.5mm |
| RoHS | Compliant |
