3-pole relay socket with screw terminals, designed for general purpose relays. Features 11 positions and a 3PDT throw configuration, supporting a 10A current rating and 250V AC/DC voltage. Mountable via DIN rail, surface mount, or through hole, with straight orientation. Compliant with RoHS and approved by UL, CSA, and CE.
Voltage250V
Current Rating10A
MountingDIN Rail, Surface Mount, Through Hole
Quick Jump:
Technical Specifications
Omron PF113A-E technical specifications.
General
| Approvals | UL, CSA, CE |
| Current Rating | 10A |
| Depth | 42.8mm |
| Lead Free | Lead Free |
| Length | 52mm |
| Mount | DIN Rail, Surface Mount, Through Hole |
| Number of Contacts | 11 |
| Number of Poles | 3 |
| Number of Positions | 11 |
| Orientation | Straight |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| RoHS Compliant | Yes |
| Series | MK |
| Termination | Screw |
| Throw Configuration | 3PDT |
| Voltage | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Omron PF113A-E Datasheet
Download the complete datasheet for Omron PF113A-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

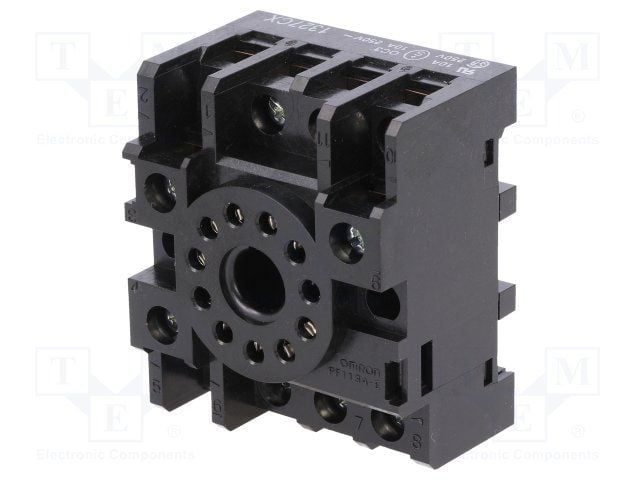

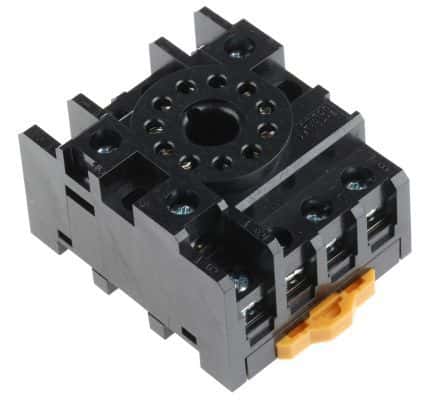

Product Images
