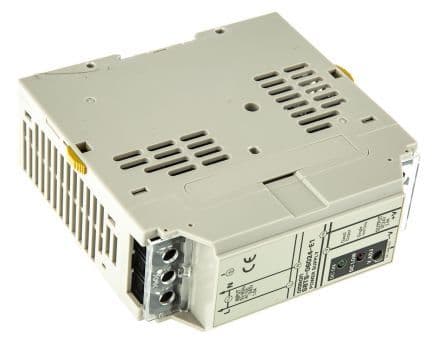

Single-output AC/DC power supply delivering 24V at 2.5A, with a maximum output power of 60W. Features include 80% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-264V AC. Operates within -10°C to 55°C and mounts via DIN rail. Approvals include VDE, CE, cULus, and cURus.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron S8TS-06024-E1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | VDE, CE, cULus, cURus |
| Current - Output 1 | 2.5A |
| Depth | 48mm |
| Efficiency | 80% |
| Height | 4.72inch |
| Input Current | 1A |
| Isolation Voltage | 3kV |
| Length | 120mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 60W |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 60W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | S8TS |
| Voltage - Output 1 | 24V |
| Weight | 450g |
| Width | 43mm |
| RoHS | Compliant |
Download the complete datasheet for Omron S8TS-06024-E1 to view detailed technical specifications.
