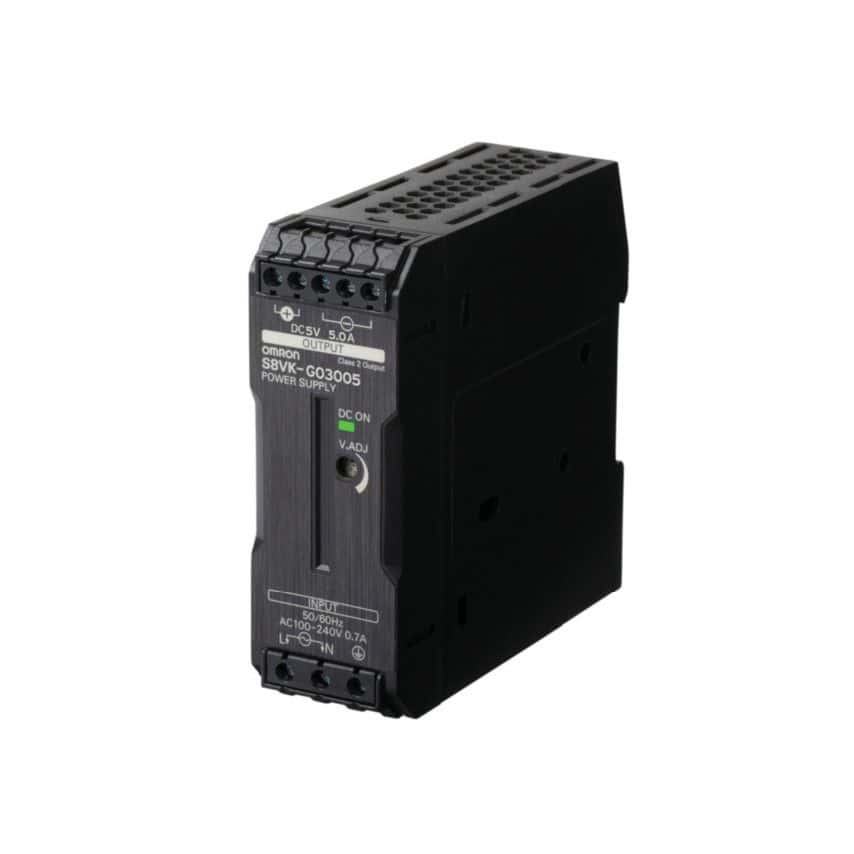

Enclosed AC/DC power supply delivering 5VDC at 30W output power. Features a 5A maximum output current and a single output. Operates with an input voltage range of 100VAC to 240VAC and boasts 79% efficiency. Isolation voltage is rated at 3kV, with operating temperatures from -40°C to 75°C. This RoHS compliant unit is designed for DIN rail mounting and holds VDE, CE, and cULus approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron S8VK-G03005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron S8VK-G03005 technical specifications.
| Approvals | VDE, CE, cULus |
| Current - Output 1 | 5A |
| Depth | 90mm |
| Efficiency | 79% |
| Height | 3.54inch |
| Isolation Voltage | 3kV |
| Length | 90mm |
| Max Input Voltage | 240V |
| Min Input Voltage | 100V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 5V |
| Min Output Voltage | 5V |
| Max Power Dissipation | 30W |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Power | 30W |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |

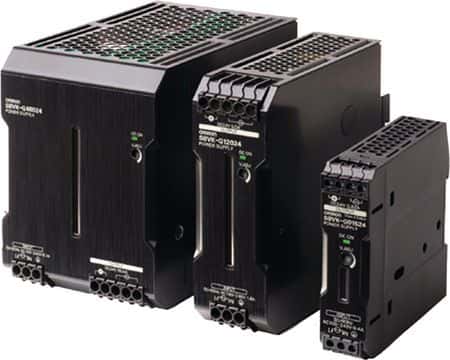

| Series | S8VK-G |
| Voltage - Output 1 | 5V |
| Weight | 195g |
| Width | 32mm |
| RoHS | Compliant |
