Enclosed AC/DC power supply, 120W output power, 24V nominal output voltage, and 5A maximum output current. Features 89% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-264VAC. Operates from -40°C to 75°C and mounts via DIN rail. Dimensions are 125mm height, 40mm width, and 122.5mm depth. RoHS compliant.
Package120
MountingDIN Rail
Power120W
Quick Jump:
Technical Specifications
Omron S8VK-G12024 technical specifications.
General
Package/Case
120
Current - Output 1
5A
Depth
122.5mm
Efficiency
89%
Height
125mm
Isolation Voltage
3kV
Length
122.2mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Power
120W
Max Output Voltage
24V
Min Output Voltage
24V
Max Power Dissipation
120W
Mount
DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
5A
Output Power
120W
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S8VK-G (120W)
Voltage - Output 1
24V
Weight
1.367lb
Width
40mm
Compliance
RoHS
Compliant
Datasheet
Omron S8VK-G12024 Datasheet
Download the complete datasheet for Omron S8VK-G12024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

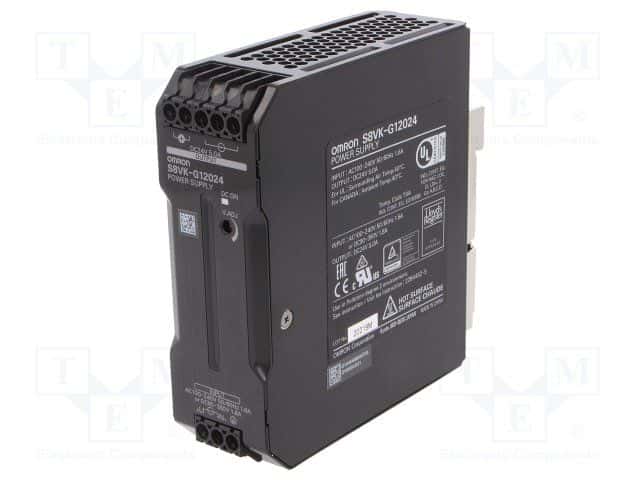

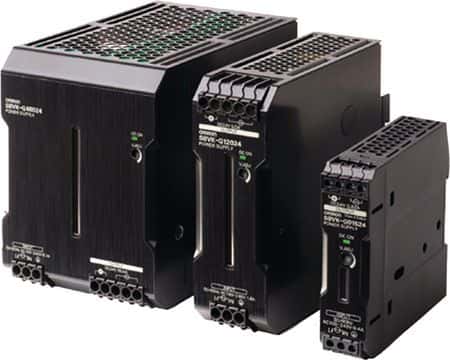

Product Images
