30W AC/DC converter with a single 24V output, delivering 1.3A maximum current. Features 80% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-264V AC. Operates between -10°C and 60°C, with DIN rail mounting. RoHS compliant and lead-free.
Frequency450Hz
Current Rating1.3A
MountingDIN Rail
Power30W
Quick Jump:
Technical Specifications
Omron S8VS-03024 technical specifications.
General
| Current - Output 1 | 1.3A |
| Current Rating | 1.3A |
| Depth | 22.5mm |
| Efficiency | 80% |
| Frequency | 450Hz |
| Height | 85mm |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 96.4mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 1.3A |
| Max Output Power | 30W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 30W |
| Mount | DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Output Power | 30W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | S8VS (30W) |
| Voltage - Output 1 | 24V |
| Voltage Rating (AC) | 240V |
| Weight | 6.349313oz |
| Width | 22.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron S8VS-03024 Datasheet
Download the complete datasheet for Omron S8VS-03024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

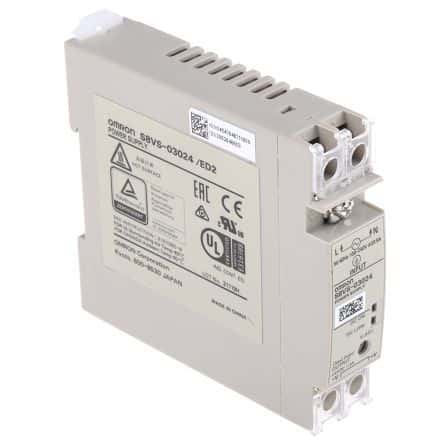

Product Images
