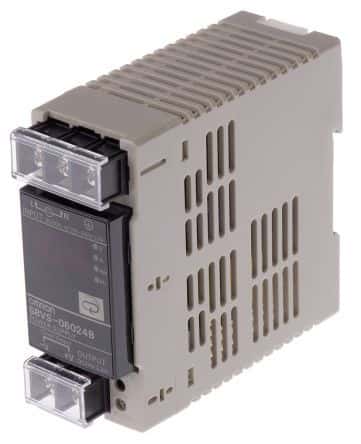

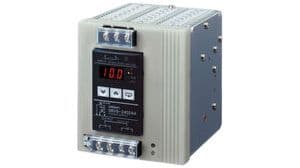

Enclosed AC/DC power supply delivering 60W maximum output power at a nominal 24V. Features a single 2.5A output, 85-264V AC input range, and 78% efficiency. Isolation voltage rated at 3kV, with operating temperatures from -10°C to 60°C. Certified with VDE, CE, cULus, and cURus approvals, this RoHS compliant unit is designed for DIN rail mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron S8VS-06024B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron S8VS-06024B technical specifications.
| Approvals | VDE, CE, cULus, cURus |
| Current - Output 1 | 2.5A |
| Current Rating | 2.5A |
| Depth | 40mm |
| Efficiency | 78% |
| Height | 3.74inch |
| Isolation Voltage | 3kV |
| Length | 108.3mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Output Voltage | 24V |
| Min Output Voltage | 24V |
| Max Power Dissipation | 60W |
| Mount | DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 60W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | S8VS |
| Voltage - Output 1 | 24V |
| Voltage Rating (AC) | 240V |
| Weight | 11.640407oz |
| Width | 40mm |
| RoHS | Compliant |
