SHL-D55-01

Datasheet

SPDT Limit Switch, N.O./N.C., 0.1A 125VAC, Screw Mount, IP67

Omron

SHL-D55-01

Name: SHL-D55-01 Omron
Brand: Omron
SKU: SHL-D55-01

SPDT Limit Switch, N.O./N.C., 0.1A 125VAC, Screw Mount, IP67

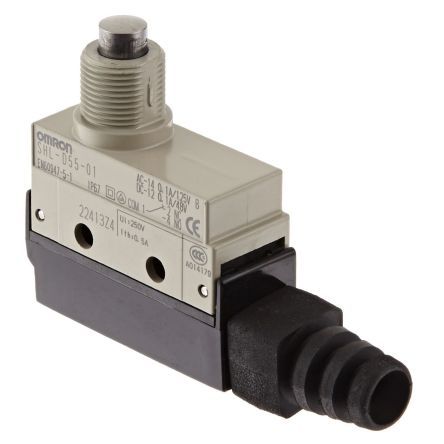

SPDT limit switch with plunger actuator, featuring N.O./N.C. contacts and a straight orientation. Rated for 0.1A at 125VAC and 30VDC, with a mechanical life of 10,000,000 cycles and electrical life of 500,000 cycles. Operating force is 9.6N, with differential travel of 0.02 inches and overtravel of 0.079 inches. Panel and chassis mountable via screw terminals, this waterproof and dust-tight (IP67) component operates between -10°C and 80°C.

Current Rating100mA

MountingPanel, Chassis Mount, Screw

Quick Jump:

Technical Specifications

Omron SHL-D55-01 technical specifications.

General

Approvals	UL, CSA, TUV
Current Rating	100mA
Depth	17.5mm
Differential Travel	0.02inch
Electrical Life	500000Cycles
Height	52.4mm
Length	73.5mm
Max Operating Temperature	80°C
Min Operating Temperature	-10°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	30V
Mechanical Life	10000000Cycles
Mount	Panel, Chassis Mount, Screw
Operating Force	9.6N
Operating Position	1.339inch
Orientation	Straight
Overtravel	0.079inch
Package Quantity	1
Packaging	Bulk
Pretravel	0.06inch
Ratings	IP67, Waterproof, Dust Tight
RoHS Compliant	Yes
Series	SHL
Switch Function	On-Mom
Termination	Screw
Throw Configuration	SPDT
Voltage Rating (AC)	125V
DC Rated Voltage	30V
