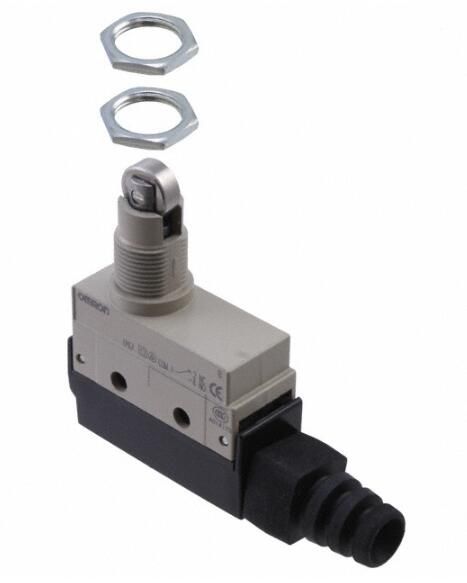

SPDT snap-action switch with a 5A current rating and 125V AC / 30V DC voltage rating. Features screw termination and panel mount with straight orientation. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Operating force is 9.81N, with an operating temperature range of -10°C to 80°C. IP67 rated for waterproof and dust-tight protection, with UL, CSA, and TUV approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron SHL-Q-2255-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, TUV |
| Current Rating | 5A |
| Depth | 17.5mm |
| Electrical Life | 500000Cycles |
| Height | 61.4mm |
| Lead Free | Lead Free |
| Length | 73.5mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Screw, Panel |
| Operating Force | 9.81N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Series | SHL |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
