OMRON

SS-01

Datasheet

SPDT Snap Action Switch, Pin Plunger, 0.1A 125VAC/30VDC, Solder

Omron

SS-01

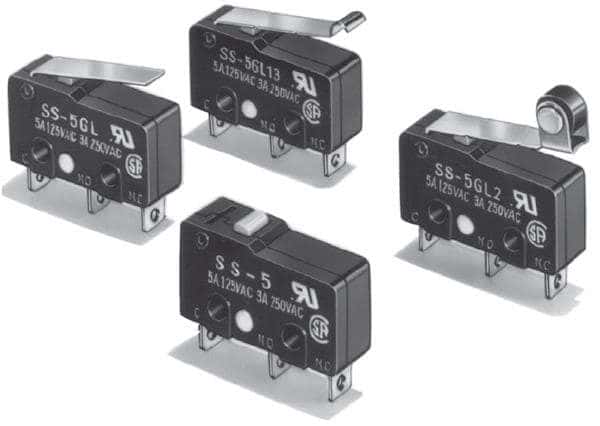

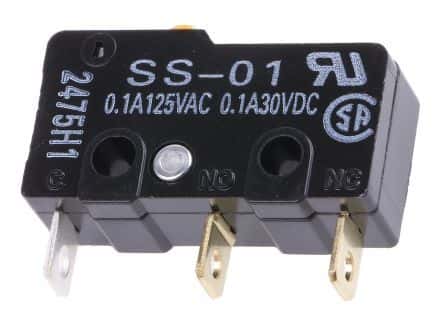

Name: SS-01 Omron
Brand: Omron
SKU: SS-01

SPDT Snap Action Switch, Pin Plunger, 0.1A 125VAC/30VDC, Solder

SPDT snap-action switch with a pin plunger actuator, rated for 100mA at 125VAC and 30VDC. Features gold contacts, a 1.47N operating force, and straight orientation. This switch offers 200,000 electrical cycles and 30,000,000 mechanical cycles, with screw and solder termination. It is RoHS compliant, IP40 rated, and operates within a -25°C to 85°C temperature range.

Package100

Current Rating100mA

MountingChassis Mount, Screw, Solder

Quick Jump:

Technical Specifications

Omron SS-01 technical specifications.

General

Actuator Type	PIN PLUNGER
Approvals	UL, CSA
Package/Case	100
Contact Current Rating	100mA
Contact Material	Gold
Current Rating	100mA

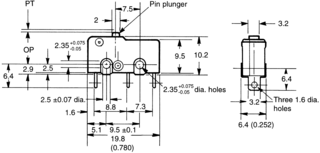

Depth	6.4mm
Electrical Life	200000Cycles
Lead Free	Lead Free
Length	19.8mm
Max Current Rating	100mA
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	30V
Mechanical Life	30000000Cycles
Mount	Chassis Mount, Screw, Solder
Number of Poles	1
Operating Force	1.47N
Orientation	Straight
Package Quantity	500
Packaging	Tray
Radiation Hardening	No
Ratings	IP40
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	SS
Switch Function	On-Mom
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	125V
DC Rated Voltage	30V
Weight	1.6g
