Subminiature basic switch featuring a hinge lever actuator and SPDT throw configuration. Offers a 100mA contact current rating with gold contact material for reliable performance. Designed for chassis mount with solder termination, this switch operates from -25°C to 85°C and boasts a 200,000 cycle electrical life and 30 million cycle mechanical life. Rated for 125VAC and 30VDC, it is RoHS compliant and IP40 protected.
Package100
Current Rating100mA
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron SS-01GL-E technical specifications.
General
| Actuator Type | HINGE LEVER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 30000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 0.08N |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Tray |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron SS-01GL-E Datasheet
Download the complete datasheet for Omron SS-01GL-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

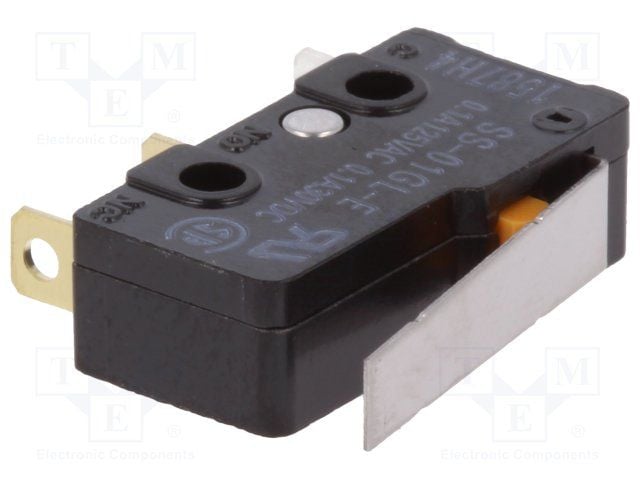

Product Images
