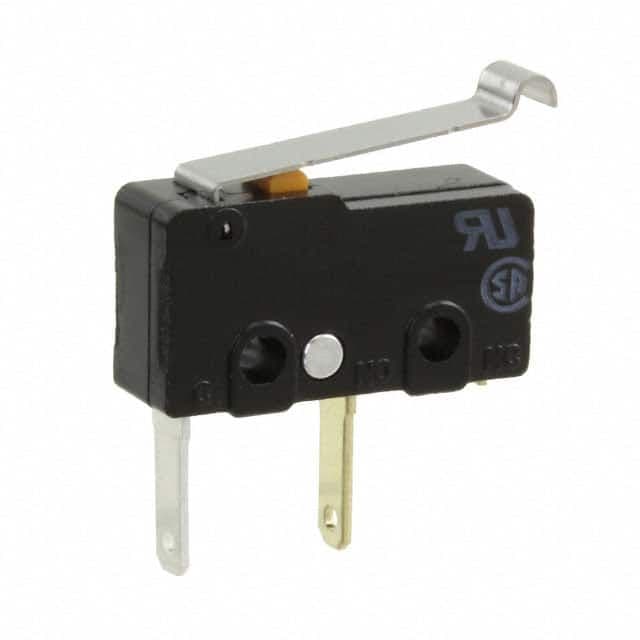

The Omron SS-01GL13-F-3T is a 30V SPST switch with a chassis mount and 16gf operating force. It has a mechanical life of 30000000 cycles and an electrical life of 200000 cycles. The switch operates within a temperature range of -25°C to 85°C and is rated for 125V AC. It is RoHS compliant and has an IP40 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron SS-01GL13-F-3T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Electrical Life | 200000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 30000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount |
| Operating Force | 16gf |
| Packaging | Bulk |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
