SPDT snap action switch featuring a simulated roller lever actuator. Rated for 10.1A at 250V AC and 250V DC, with a 14V DC maximum. Offers a 10.1A contact current rating with silver contacts and a 50000-cycle electrical life. Mounts via chassis screw, with quick connect termination and a straight orientation. Operates within a -25°C to 85°C temperature range, boasting a 10,000,000-cycle mechanical life.
Current Rating10.1A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-10GL13T technical specifications.
General
| Actuator Type | SIMULATED ROLLER LEVER |
| Contact Current Rating | 10.1A |
| Contact Material | Silver |
| Current Rating | 10.1A |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 14V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 0.49N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Tray |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Omron SS-10GL13T Datasheet
Download the complete datasheet for Omron SS-10GL13T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

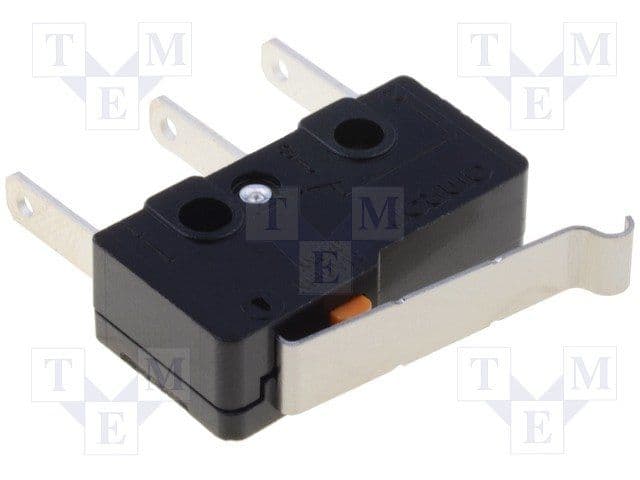

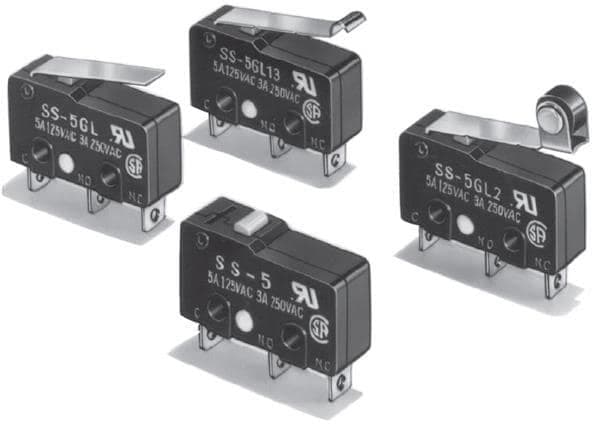

Product Images
