SPST-NC pin plunger microswitch, rated for 5A at 125V AC and 14V DC. Features a silver contact material, 1.47N operating force, and quick connect termination. Offers a robust mechanical life of 30,000,000 cycles and an electrical life of 200,000 cycles. Designed for chassis mounting with screw terminals, operating within a temperature range of -25°C to 85°C. IP40 rated and RoHS compliant.
Package125
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-5-2T technical specifications.
General
Actuator Type
PIN PLUNGER
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Electrical Life
200000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
14V
Mechanical Life
30000000Cycles
Mount
Chassis Mount, Screw
Operating Force
1.47N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
125V
Weight
1.6g
Compliance
RoHS
Compliant
Datasheet
Omron SS-5-2T Datasheet
Download the complete datasheet for Omron SS-5-2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

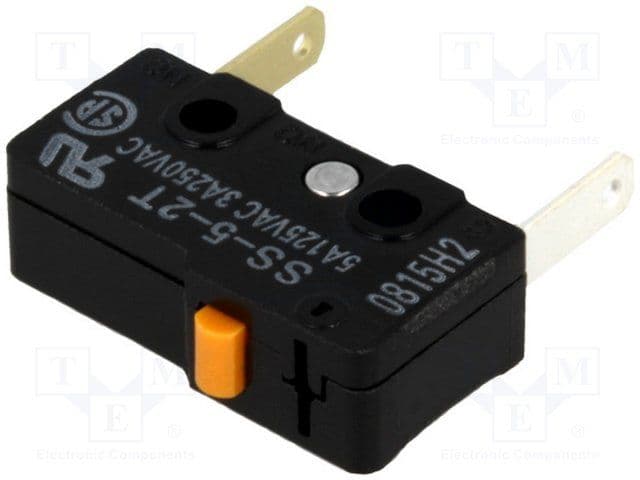

Product Images
