Omron
SS-5GL13-FD
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever 5A 250VAC 0.16N Thru-Hole PC Pins
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron SS-5GL13-FD technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Electrical Life
200000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
14V
Mechanical Life
30000000Cycles
Mount
Through Hole
Operating Force
0.16N
Orientation
Straight
Package Quantity
500
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Omron SS-5GL13-FD Datasheet
Download the complete datasheet for Omron SS-5GL13-FD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

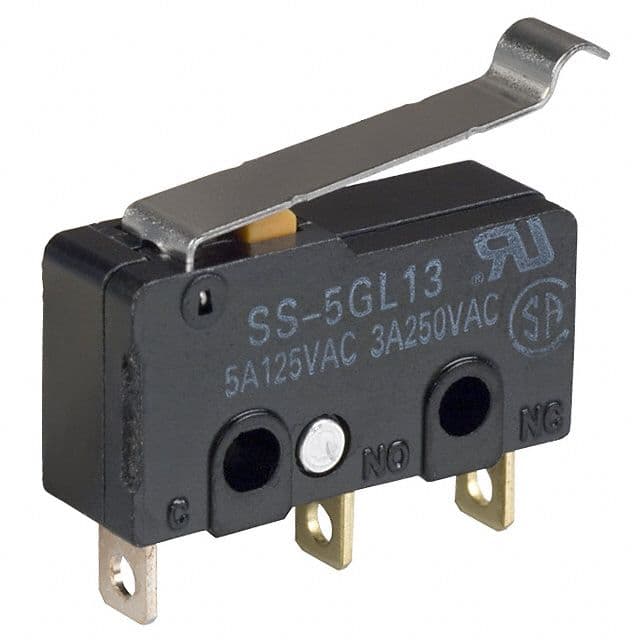

Product Images
