SPDT snap action switch featuring a roller lever actuator made from stainless steel, resin, and polyacetal. This switch offers a 5A contact current rating at 125VAC and 30VDC, with a 0.16N operating force. It boasts a 200,000 cycle electrical life and 30,000,000 cycle mechanical life, with solder termination and chassis/screw mounting options. Approvals include UL and CSA, with IP40 rating and RoHS compliance.
Package125
Current Rating4A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications

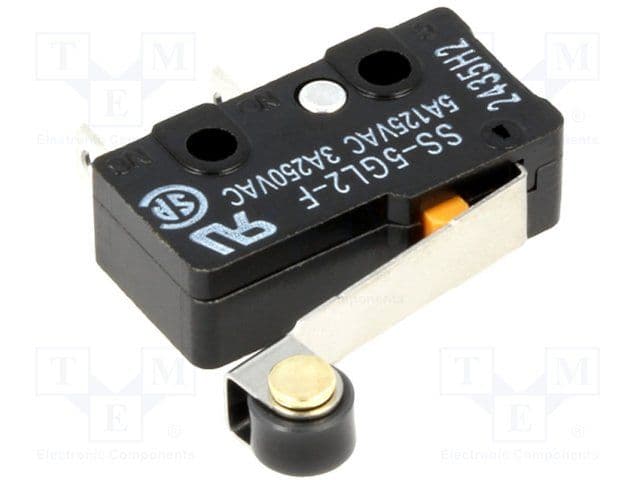

Omron SS-5GL2-F technical specifications.
General
| Actuator Material | Stainless Steel, Resin, Polyacetal |
| Actuator Type | ROLLER LEVER |
| Approvals | UL, CSA |
| Package/Case | 125 |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Current Rating | 4A |
| Depth | 6.4mm |
| Differential Travel | 0.031inch |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 22.05mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 14V |
| Mechanical Life | 30000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Number of Poles | 1 |
| Operating Force | 0.16N |
| Operating Position | 0.571inch |
| Orientation | Straight |
| Overtravel | 0.047inch |
| Package Quantity | 500 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron SS-5GL2-F Datasheet
Download the complete datasheet for Omron SS-5GL2-F to view detailed technical specifications.
