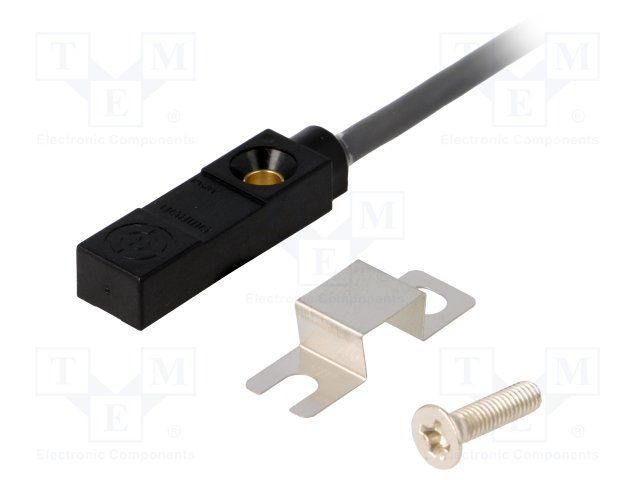

Inductive proximity sensor module with a 1.5mm sensing distance. Features an NPN output configuration and operates with a DC supply voltage range of 10V to 30V. This unshielded component has a response frequency of 1kHz and a switching current of 100mA. Constructed with a plastic body, it measures 25mm in length, 8mm in width, and 5.5mm in height, with a depth of 5.5mm. Mountable via brackets, DIN rail, or panel, it offers IP67 environmental protection and operates between -25°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron TL-W1R5MC1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 5.5mm |
| Height | 5.5mm |
| Lead Free | Contains Lead |
| Length | 25mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Brackets, DIN Rail, Panel |
| Operating Supply Current | 15mA |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 1kHz |
| RoHS Compliant | Yes |
| Sensing Distance | 1.5mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 100mA |
| Termination | Cable Leads |
| Width | 8mm |
| RoHS | Compliant |
