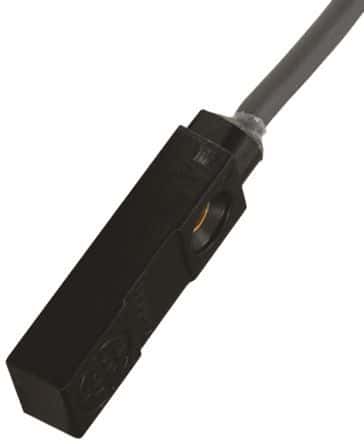

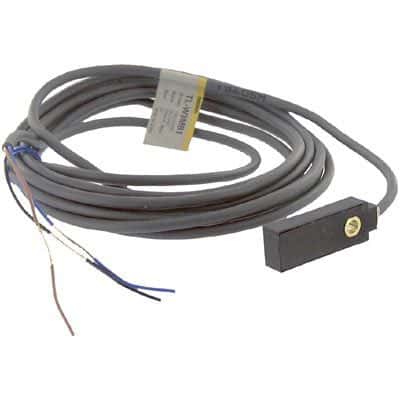

Inductive proximity sensor with a 3mm sensing distance and PNP output configuration. Features a 12V to 24VDC operating voltage range and a maximum switching current of 100mA. This unshielded, plastic-bodied sensor operates within a temperature range of -25°C to 70°C and offers IP67 environmental protection. Mountable via brackets or panel, it includes cable leads for termination and has a response frequency of 600Hz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron TL-W3MB1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron TL-W3MB1 technical specifications.
| Approvals | UL, CSA |
| Body Material | Plastic |
| Package/Case | Module |
| Depth | 6mm |
| Height | 6mm |
| Lead Free | Contains Lead |
| Length | 27mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Brackets, Panel |
| Operating Supply Current | 15mA |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 600Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 3mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Current | 100mA |
| Termination | Cable Leads |
| Width | 10mm |
| RoHS | Compliant |
