Rectangular inductive proximity sensor with a 5mm sensing distance. Features a plastic body, panel mount, and cable lead termination. Operates on 10-30V DC with a 10mA supply current and 500Hz response frequency. Offers NPN output configuration and IP67 rating. Suitable for operating temperatures from -25°C to 70°C.
PackageModule
MountingPanel
Quick Jump:
Technical Specifications
Omron TL-W5MD1 technical specifications.
General
| Body Material | Plastic |
| Package/Case | Module |
| Height | 30.5mm |
| Length | 18mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Panel |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Frequency | 500Hz |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Termination | Cable Leads |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron TL-W5MD1 Datasheet
Download the complete datasheet for Omron TL-W5MD1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

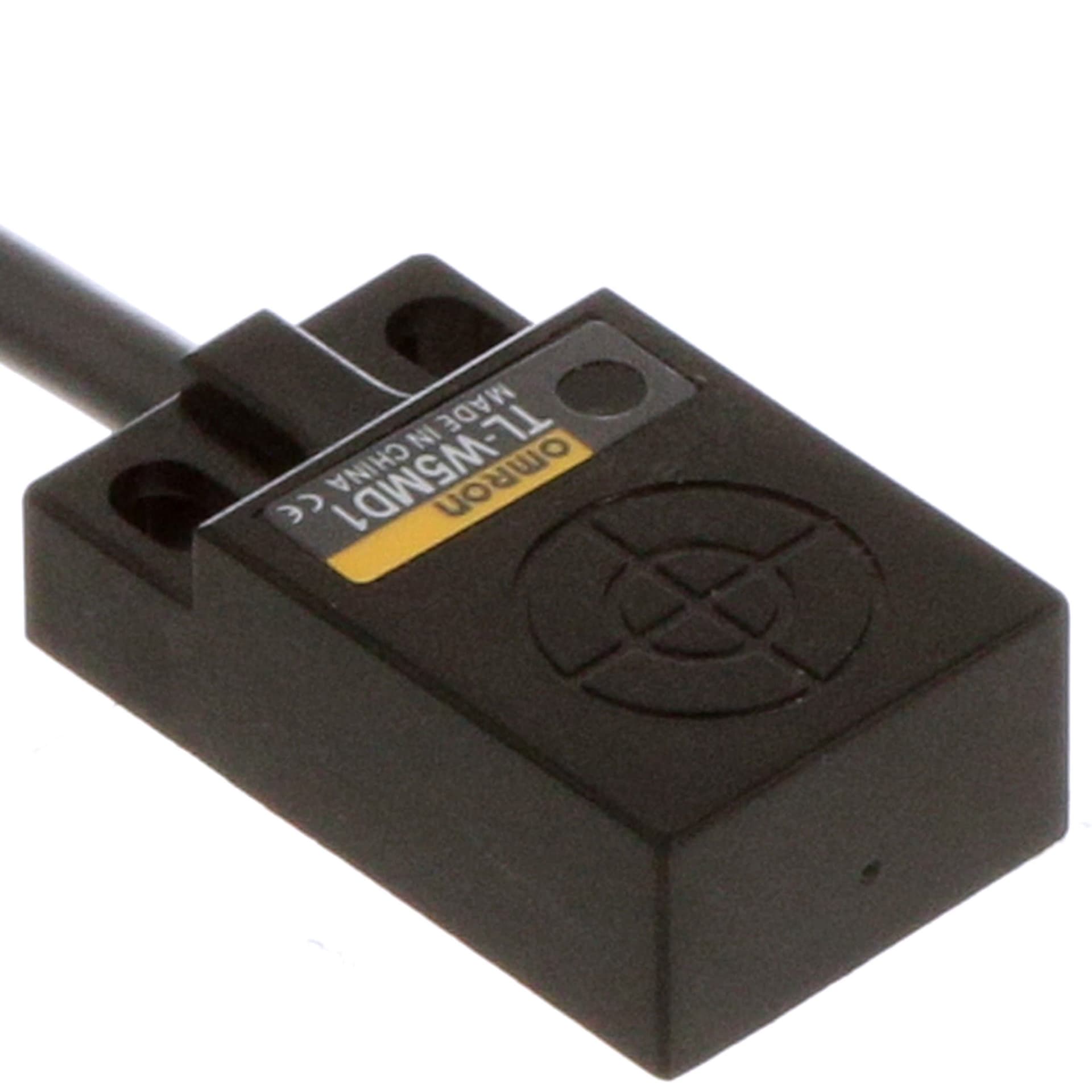

Product Images
