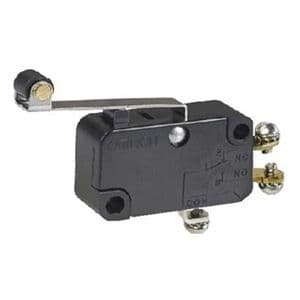

SPDT snap action switch featuring a hinge roller lever. Rated for 6A at 250VAC and 30VDC, with a 250VDC max rating. Offers a 0.59N operating force and 0.157-inch pretravel, with 0.06-inch differential travel and 0.062-inch overtravel. Silver contacts ensure durability with a 300,000-cycle electrical life and 50,000,000-cycle mechanical life. Chassis mountable via screw terminals, operating between -25°C and 80°C, and IP40 rated.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron V-10G6-1B4-K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Silver |
| Current Rating | 6A |
| Differential Travel | 0.06inch |
| Electrical Life | 300000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Mechanical Life | 50000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 0.59N |
| Operating Position | 0.815inch |
| Orientation | Straight |
| Overtravel | 0.062inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.157inch |
| Ratings | IP40 |
| RoHS Compliant | Yes |
| Series | V |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
