SPDT snap action switch featuring a 15A current rating and 250V AC/DC voltage rating. Silver contacts ensure reliable performance with a mechanical life of 50,000,000 cycles and electrical life of 100,000 cycles. Designed for panel or chassis mounting via screws, this switch offers a straight orientation with a pretravel of 0.047 inches and overtravel of 0.04 inches. Operating force is 1.96N, with a differential travel of 0.016 inches. Rated for IP40 protection, it operates within a temperature range of -25°C to 80°C.
Current Rating10A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-15-1B5 technical specifications.
General
Contact Material
Silver
Current Rating
10A
Differential Travel
0.016inch
Electrical Life
100000Cycles
Max Operating Temperature
80°C
Mechanical Life
50000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Panel, Chassis Mount, Screw
Operating Force
1.96N
Operating Position
0.579inch
Orientation
Straight
Overtravel
0.04inch
Package Quantity
100
Packaging
Bulk
Pretravel
0.047inch
Ratings
IP40
Series
V
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
6.2g
Compliance
RoHS
Compliant
Datasheet
Omron V-15-1B5 Datasheet
Download the complete datasheet for Omron V-15-1B5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

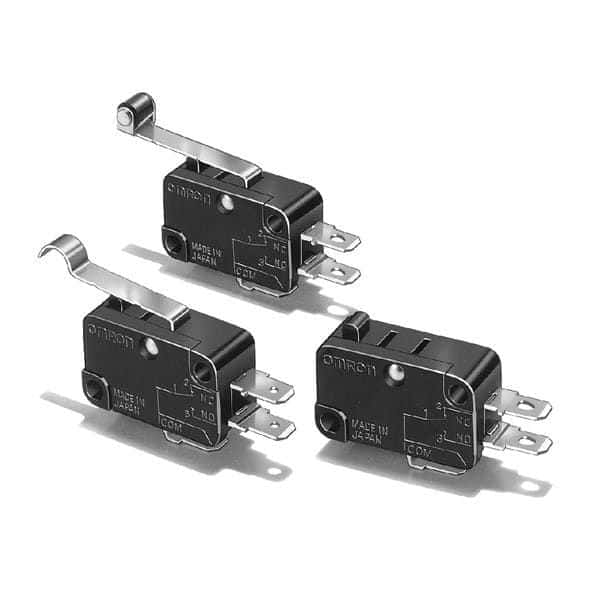

Product Images
