SPDT Miniature Basic Switch featuring silver contacts and a 10A current rating. Designed for panel or chassis mounting with screw terminals, it offers a 250V AC/DC voltage rating and 30V DC rated voltage. This switch boasts an electrical life of 100,000 cycles and a mechanical life of 50,000,000 cycles, operating within a temperature range of -25°C to 80°C. It includes quick connect termination and an IP40 rating for enhanced protection.
Current Rating10A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-16-1C25 technical specifications.
General
Contact Material
Silver
Current Rating
10A
Differential Travel
0.016inch
Electrical Life
100000Cycles
Max Operating Temperature
80°C
Mechanical Life
50000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Panel, Chassis Mount, Screw
Operating Force
200gf
Operating Position
0.579inch
Overtravel
0.04inch
Package Quantity
100
Packaging
Bulk
Pretravel
0.047inch
Ratings
IP40
RoHS Compliant
Yes
Series
V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron V-16-1C25 Datasheet
Download the complete datasheet for Omron V-16-1C25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

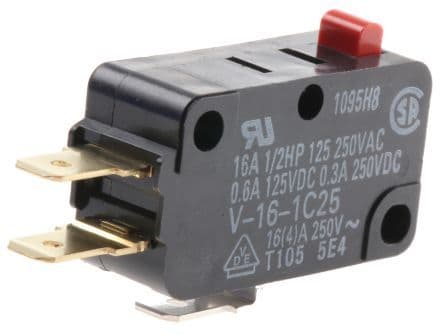

Product Images
