SPDT miniature basic switch with a 16A current rating and 250V AC/DC voltage rating. Features silver contact material, quick connect termination, and a straight orientation. Designed for general-purpose applications with a panel, chassis mount, and screw mounting style. Offers a mechanical life of 50,000,000 cycles and an electrical life of 100,000 cycles. Operates within a temperature range of -25°C to 80°C and has an IP40 rating.
Current Rating16A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-16-1C5 technical specifications.
General
| Contact Material | Silver |
| Current Rating | 16A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 80°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 50000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 1.96N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | V |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Type | General Purpose |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Weight | 6.2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron V-16-1C5 Datasheet
Download the complete datasheet for Omron V-16-1C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

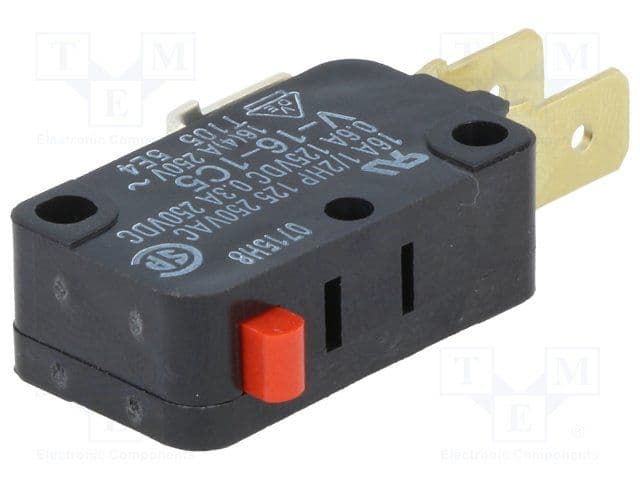

Product Images
