Miniature basic switch featuring silver contacts and a 16A current rating. This SPDT, On-Mom switch offers a 250V AC/DC maximum voltage rating and a 125V DC rated voltage. Designed for panel or chassis mounting with screw terminals, it boasts a quick connect termination and a straight orientation. Operating within a temperature range of -25°C to 80°C, it provides 100,000 electrical cycles and 50,000,000 mechanical cycles. The switch is RoHS compliant and rated IP40.
Current Rating16A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron V-165-1C5 technical specifications.
General
Contact Material
Silver
Current Rating
16A
Depth
10.3mm
Electrical Life
100000Cycles
Length
39.8mm
Max Current Rating
16A
Max Operating Temperature
80°C
Mechanical Life
50000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Panel, Chassis Mount, Screw
Operating Force
2.35N
Orientation
Straight
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
V
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Omron V-165-1C5 Datasheet
Download the complete datasheet for Omron V-165-1C5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

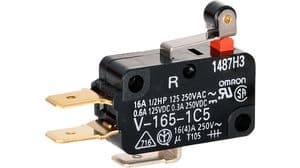

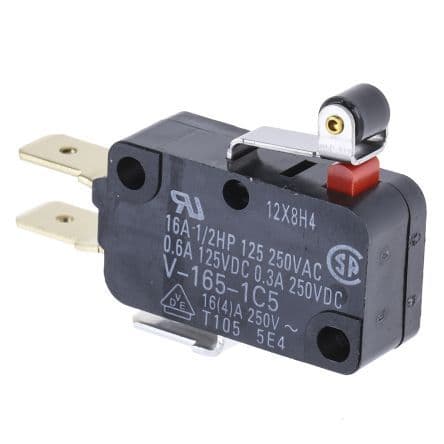

Product Images
