SPDT snap-action switch featuring a pin plunger actuator. Offers 100mA current rating at 125VAC and 30VDC with gold contacts. Designed for chassis mount via screw or solder termination, it boasts a 0.49N operating force and 100,000,000 mechanical cycles. Operating temperature range is -25°C to 80°C, with IP40 rating and RoHS compliance.
Package100
Current Rating100mA
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron VX-01-1A3 technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Differential Travel | 0.012inch |
| Electrical Life | 1000000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw, Solder |
| Operating Force | 0.49N |
| Operating Position | 0.579inch |
| Orientation | Straight |
| Overtravel | 0.04inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.047inch |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | VX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron VX-01-1A3 Datasheet
Download the complete datasheet for Omron VX-01-1A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

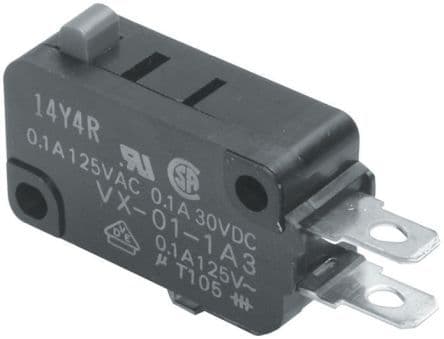

Product Images
