SPDT snap-action switch featuring a pin plunger actuator and solder termination. Rated for 5A at 250VAC and 30VDC, with a contact material of silver. Offers a mechanical life of 50,000,000 cycles and an electrical life of 500,000 cycles. Mounting options include panel, chassis, screw, and solder. Operating force is 0.25N, with an operating temperature range of -25°C to 80°C.
Current Rating5A
MountingPanel, Chassis Mount, Screw, Solder
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Omron VX-5-1A2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Omron VX-5-1A2 technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Current Rating | 5A |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 50000000Cycles |
| Mount | Panel, Chassis Mount, Screw, Solder |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 0.25N |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | VX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 6.2g |
Compliance
| RoHS | Compliant |
Datasheet
Omron VX-5-1A2 Datasheet
Download the complete datasheet for Omron VX-5-1A2 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

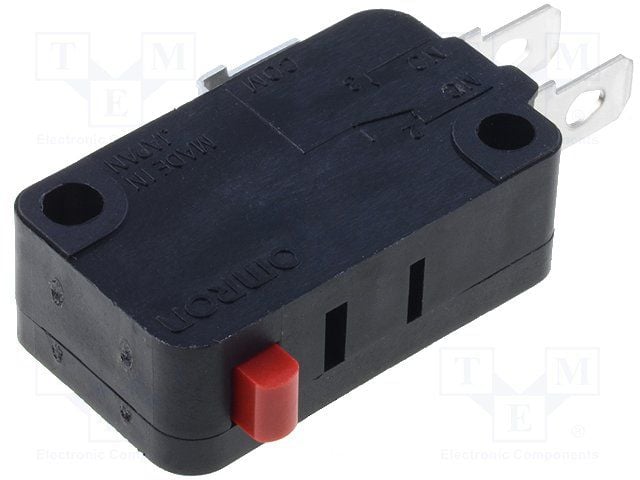

Product Images
