Omron
WLCA2-LD-M1GJ-N
Switch Limit N.O./N.C. SPST/SPST Side Rotary with Roller Lever Screw Mount 10A 500VAC 250VDC 13.34N Rotary Connector
Current Rating6A
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron WLCA2-LD-M1GJ-N technical specifications.
General
Actuator Type
Rotary
Current Rating
6A
Electrical Life
750000Cycles
Max Operating Temperature
80°C
Mechanical Life
15000000Cycles
Min Operating Temperature
-10°C
Mount
Chassis Mount
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
WL-N
Switch Function
On-Mom
Termination
Cable
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron WLCA2-LD-M1GJ-N Datasheet
Download the complete datasheet for Omron WLCA2-LD-M1GJ-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

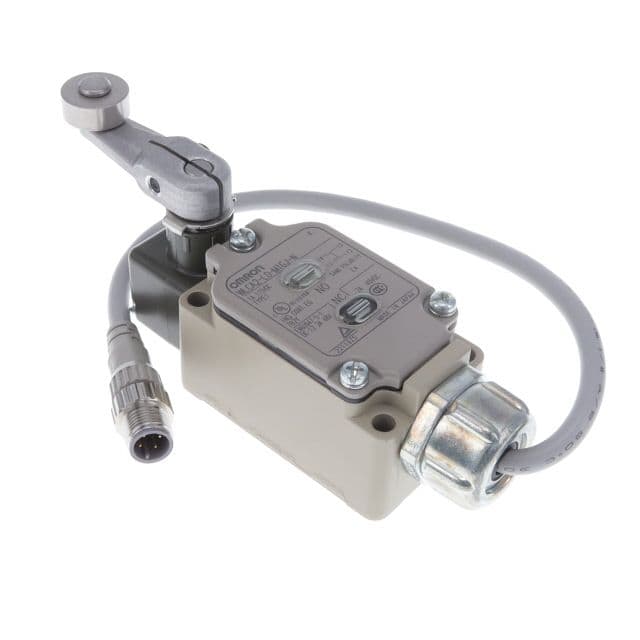

Product Images
