Omron
Z-10FW22Y55-B
Switch Snap Action N.O./N.C. DPDT Short Hinge Roller Lever 10A 250VAC 250VDC 93.21VA 2.45N Screw Mount Screw
Current Rating10A
MountingPanel, Chassis Mount
Quick Jump:
Technical Specifications
Omron Z-10FW22Y55-B technical specifications.
General
| Current Rating | 10A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 80°C |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -15°C |
| Mount | Panel, Chassis Mount |
| Operating Force | 250gf |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP62 |
| Series | Z |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron Z-10FW22Y55-B Datasheet
Download the complete datasheet for Omron Z-10FW22Y55-B to view detailed technical specifications.
No datasheet is available for this part.

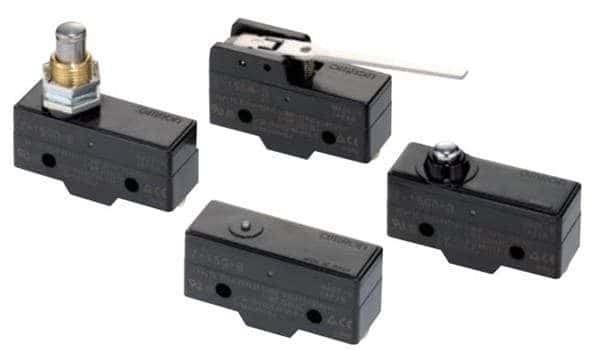

Product Images
