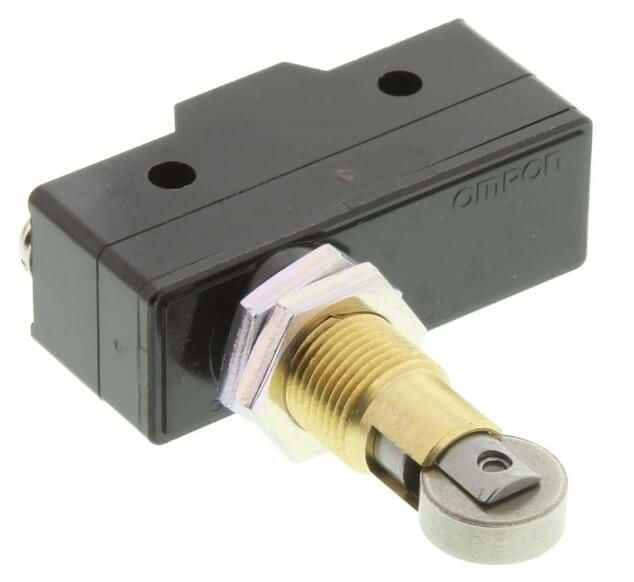

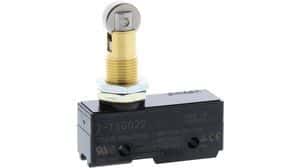

SPDT snap-action switch with roller plunger actuator. Features silver contacts, 15A max current rating, and 500V AC / 250V DC max voltage rating. Offers a mechanical life of 10,000,000 cycles and electrical life of 500,000 cycles. Panel mountable with solder termination. Operating force is 3.43N, with a pretravel of 0.015 inches and overtravel of 0.141 inches.
Current Rating6A
MountingPanel, Solder
Quick Jump:
Technical Specifications
Omron Z-15GQ22 technical specifications.
General
| Actuator Material | Stainless Steel |
| Contact Material | Silver |
| Contact Type | Snap Action |
| Current Rating | 6A |
| Depth | 17.45mm |
| Differential Travel | 0.002inch |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Length | 49.2mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 500V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Solder |
| Operating Force | 3.43N |
| Operating Position | 1.313inch |
| Orientation | Straight |
| Overtravel | 0.141inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.015inch |
| Ratings | IP00 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Z |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 58g |
| Width | 58.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron Z-15GQ22 Datasheet
Download the complete datasheet for Omron Z-15GQ22 to view detailed technical specifications.
No datasheet is available for this part.
