SPDT snap action switch with a 15A current rating and 250V AC/DC voltage rating. Features a stainless steel plunger actuator, silver contacts, and screw termination. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Operates within a temperature range of -25°C to 80°C. Mounts via panel or screw, with UL and CSA approvals.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Omron Z-15GQ22-B technical specifications.
General
Actuator Material
Stainless Steel
Actuator Type
PLUNGER
Approvals
UL, CSA
Contact Material
Silver
Contact Type
Snap Action
Current Rating
15A
Depth
17.45mm
Electrical Life
500000Cycles
Lead Free
Lead Free
Length
49.2mm
Max Current Rating
15A
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Panel, Screw
Number of Poles
1
Operating Force
3.43N
Orientation
Straight
Package Quantity
1
Packaging
Tray
Ratings
IP00
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Z
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
58g
Width
49.2mm
Compliance
RoHS
Compliant
Datasheet
Omron Z-15GQ22-B Datasheet
Download the complete datasheet for Omron Z-15GQ22-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

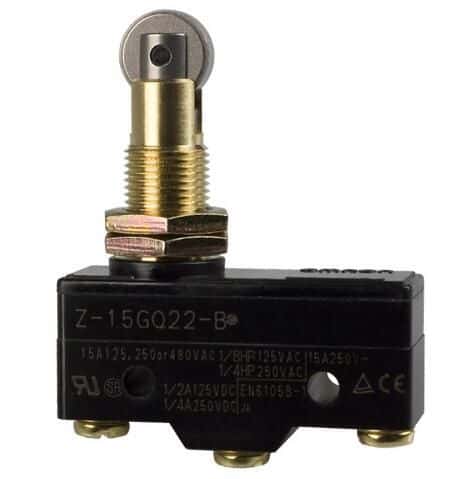

Product Images
