SPDT snap-action switch with a stainless steel plunger actuator. Features silver contacts, 15A current rating at 250VAC/250VDC, and a 3.43N operating force. Designed for panel mounting with screw terminals, offering 500,000 electrical cycles and 10,000,000 mechanical cycles. Operating temperature range from -25°C to 80°C.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Omron Z-15GQ8-B technical specifications.
General
Actuator Material
Stainless Steel
Actuator Type
PLUNGER
Contact Material
Silver
Contact Type
Snap Action
Current Rating
15A
Depth
17.45mm
Electrical Life
500000Cycles
Length
49.2mm
Max Current Rating
15A
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
500V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Panel, Screw
Operating Force
3.43N
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP00
RoHS Compliant
No
Series
Z
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
58g
Width
58mm
Compliance
RoHS
Not Compliant
Datasheet
Omron Z-15GQ8-B Datasheet
Download the complete datasheet for Omron Z-15GQ8-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

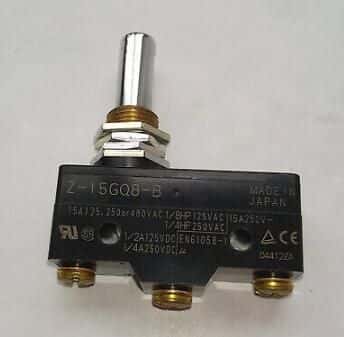

Product Images
