SPDT snap-action switch featuring a short hinge roller lever actuator. Rated for 15A at 250VAC and 250VDC, with a 30VDC rating. Offers a 1.96N operating force and 0.031-inch differential travel. Constructed with silver contacts, stainless steel and plastic actuator, and screw termination. IP62 rated, RoHS compliant, and suitable for panel or chassis mounting.
Package200
Current Rating6A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron Z-15GW2255-B technical specifications.
General
| Actuator Material | Stainless Steel, Plastic |
| Actuator Type | ROLLER LEVER |
| Package/Case | 200 |
| Contact Material | Silver |
| Contact Type | Snap Action |
| Current Rating | 6A |
| Depth | 17.45mm |
| Differential Travel | 0.031inch |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Length | 49.2mm |
| Max Current Rating | 15A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -15°C |
| Max Voltage Rating (AC) | 500V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 1.96N |
| Operating Position | 1.188inch |
| Orientation | Straight |
| Overtravel | 0.094inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP62 |
| RoHS Compliant | Yes |
| Series | Z |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 58g |
| Width | 39.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron Z-15GW2255-B Datasheet
Download the complete datasheet for Omron Z-15GW2255-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

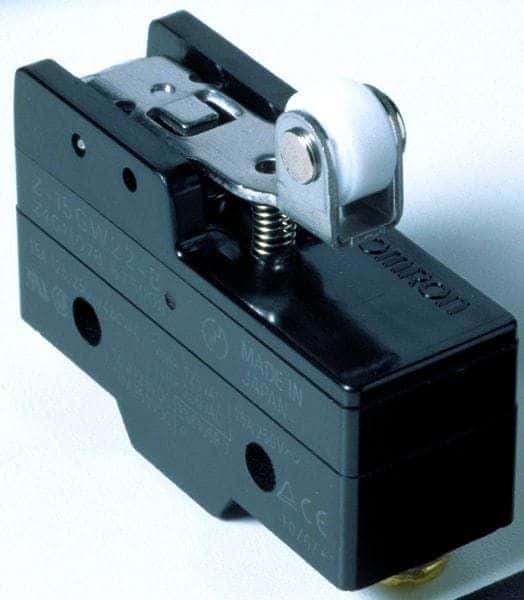

Product Images
