SPDT basic snap action switch featuring a stainless steel lever actuator. Rated for 15A maximum current and 500V AC / 250V DC maximum voltage, with a 6A continuous rating. Offers 500,000 electrical cycles and 10,000,000 mechanical cycles. Panel and chassis mountable via screw terminals, with a straight orientation. Operating force is 0.98N, and it operates within a temperature range of -15°C to 80°C.
Current Rating6A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron Z-15GW55-B technical specifications.
General
Actuator Material
Stainless Steel
Actuator Type
Lever
Contact Material
Silver
Contact Type
Snap Action
Current Rating
6A
Depth
17.45mm
Differential Travel
0.08inch
Electrical Life
500000Cycles
Lead Free
Lead Free
Length
74.6mm
Max Current Rating
15A
Max Operating Temperature
80°C
Min Operating Temperature
-15°C
Max Voltage Rating (AC)
500V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Panel, Chassis Mount, Screw
Operating Force
0.98N
Operating Position
0.748inch
Orientation
Straight
Overtravel
0.219inch
Package Quantity
1
Packaging
Bulk
Ratings
IP62, IP00
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Z
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
58g
Width
49.2mm
Compliance
RoHS
Compliant
Datasheet
Omron Z-15GW55-B Datasheet
Download the complete datasheet for Omron Z-15GW55-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

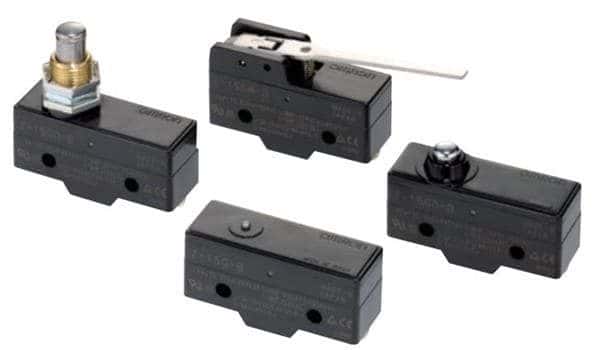

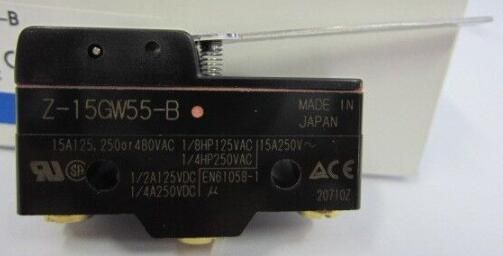

Product Images
