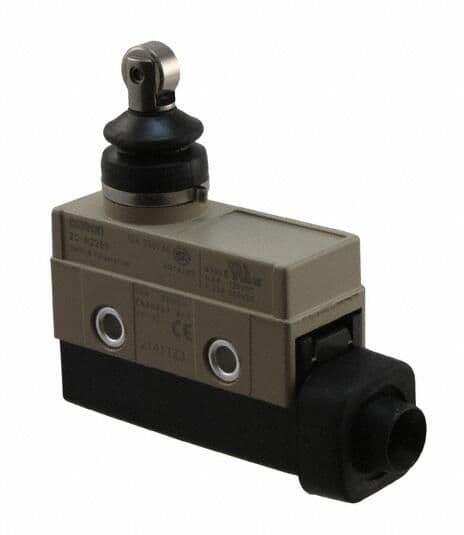

SPDT snap-action switch with a 10A current rating and 250V AC voltage rating. Features a durable metal package, screw termination, and straight orientation. Rated for 500,000 electrical cycles and 10,000,000 mechanical cycles, with an operating force of 700gf. Operates within a temperature range of -10°C to 80°C and offers IP67, waterproof, and dust-tight protection. Mounts via panel, chassis, or screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron ZC-N2255 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron ZC-N2255 technical specifications.
| Package/Case | Metal |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 21.7mm |
| Diameter | 9.5mm |
| Electrical Life | 500000Cycles |
| Lead Free | Lead Free |
| Length | 55mm |
| Material | Rubber |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 480V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 700gf |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |

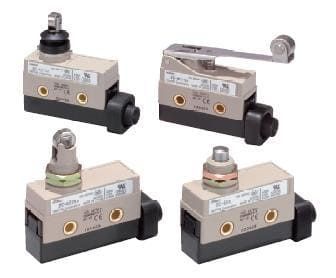

| Series | ZC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | DP4T, SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 53.4mm |
| RoHS | Not Compliant |
