Snap action limit switch featuring a roller plunger actuator. Offers SPST and SPDT contact configurations with a 6A current rating and a maximum AC voltage rating of 480V. Designed for panel mounting with screw termination, this switch boasts a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Operating force is 11.8N, with a pretravel of 0.06 inches and overtravel of 0.118 inches. IP67 rated for waterproof and dust-tight operation, suitable for temperatures from -10°C to 80°C.
Current Rating6A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Omron ZC-Q2255 technical specifications.
General
| Actuator Type | PLUNGER |
| Contact Type | Snap Action |
| Current Rating | 6A |
| Depth | 21.7mm |
| Differential Travel | 0.008inch |
| Electrical Life | 500000Cycles |
| Length | 69.4mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 480V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Panel, Screw |
| Operating Force | 11.8N |
| Operating Position | 1.866inch |
| Orientation | Straight |
| Overtravel | 0.118inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pretravel | 0.06inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | ZC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPST, SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 70mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron ZC-Q2255 Datasheet
Download the complete datasheet for Omron ZC-Q2255 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

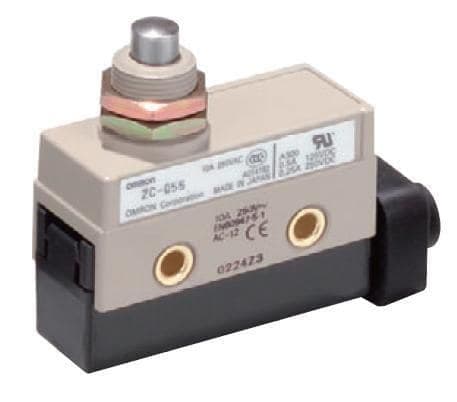

Product Images
