SPDT limit switch with a short hinge actuator, designed for panel or chassis mounting via screw terminals. Features a 10A current rating and a 480VAC/250VDC maximum voltage rating, with a 125VAC and 30VDC rated voltage. Offers a 500,000 cycle electrical life and 10,000,000 cycle mechanical life, operating within a -10°C to 80°C temperature range. IP67 rated for waterproof and dust-tight protection, with a 400gf operating force and 0.04-inch differential travel.
Current Rating6A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron ZC-W255 technical specifications.
General
| Current Rating | 6A |
| Differential Travel | 0.04inch |
| Electrical Life | 500000Cycles |
| Max Operating Temperature | 80°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 480V |
| Max Voltage Rating (DC) | 250V |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 400gf |
| Operating Position | 1.693inch |
| Orientation | Straight |
| Overtravel | 0.235inch |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ZC |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Omron ZC-W255 Datasheet
Download the complete datasheet for Omron ZC-W255 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

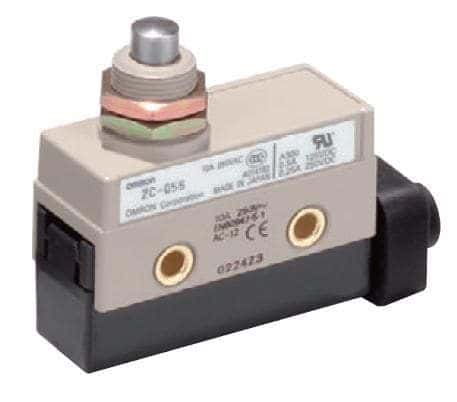

Product Images
