SPDT limit switch featuring a top plunger actuator and snap action contacts. Rated for 15A at 480VAC and 250VDC, with a 1/4HP rating. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Mounts via screw terminals and is IP65 rated for water and dust resistance.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron ZE-N-2S technical specifications.
General
Actuator Type
PLUNGER
Package/Case
125
Contact Type
Snap Action
Current Rating
15A
Depth
25.4mm
Electrical Life
500000Cycles
Height
44.5mm
Lead Free
Lead Free
Length
86mm
Max Operating Temperature
80°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Force
800gf
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ZE
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
44.5mm
Compliance
RoHS
Compliant
Datasheet
Omron ZE-N-2S Datasheet
Download the complete datasheet for Omron ZE-N-2S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

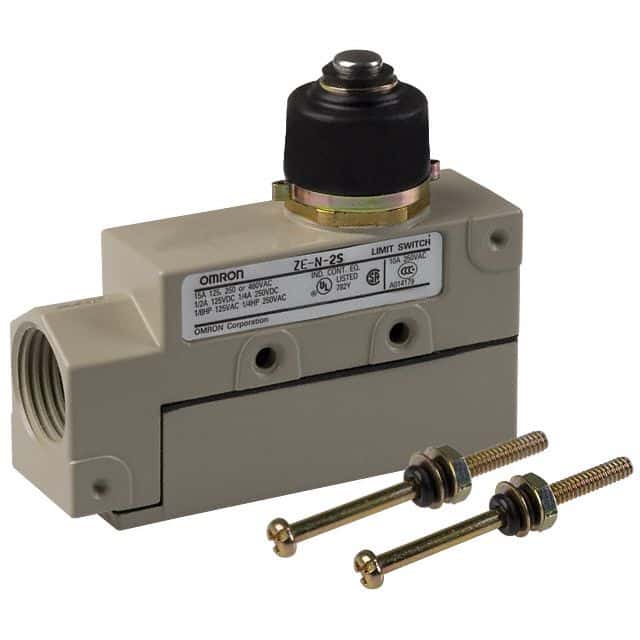

Product Images
