SPDT limit switch featuring snap-action contacts and a top roller plunger actuator. Rated for 15A at 480VAC and 250VDC, with a 1/4HP rating. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Mounting options include panel, chassis, and screw terminals. IP65 rated for water and dust resistance, operating between -10°C and 80°C.
Package125
Current Rating15A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron ZE-N22-2S technical specifications.
General
Approvals
UL, CSA, CCC
Package/Case
125
Contact Type
Snap Action
Current Rating
15A
Depth
45mm
Electrical Life
500000Cycles
Height
76.2mm
Lead Free
Lead Free
Length
86mm
Max Operating Temperature
80°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Panel, Chassis Mount, Screw
Operating Force
4.9N
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ZE
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
44.5mm
Compliance
RoHS
Compliant
Datasheet
Omron ZE-N22-2S Datasheet
Download the complete datasheet for Omron ZE-N22-2S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

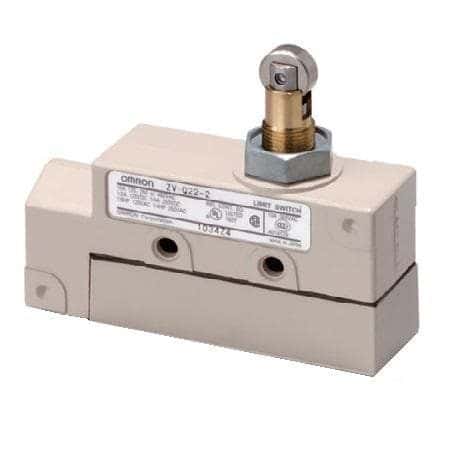

Product Images
