SPDT limit switch featuring a top roller plunger actuator. Rated for 15A at 480VAC and 250VDC, with a 1/4HP rating at 125VAC. Offers a mechanical life of 10,000,000 cycles and an electrical life of 500,000 cycles. Mounting options include panel, chassis, and screw terminals. Operating force is 3.4N with a pretravel of 0.02 inches and overtravel of 0.141 inches. IP60 and IP65 rated for dust tightness.
Current Rating15A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron ZE-Q22-2S technical specifications.
General
Current Rating
15A
Depth
25.4mm
Differential Travel
0.002inch
Electrical Life
500000Cycles
Length
86mm
Max Operating Temperature
80°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Panel, Chassis Mount, Screw
Operating Force
3.4N
Operating Position
1.957inch
Orientation
Straight
Overtravel
0.141inch
Package Quantity
1
Packaging
Bulk
Pretravel
0.02inch
Ratings
IP60, Dust Tight, IP65
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ZE
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
44.5mm
Compliance
RoHS
Compliant
Datasheet
Omron ZE-Q22-2S Datasheet
Download the complete datasheet for Omron ZE-Q22-2S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

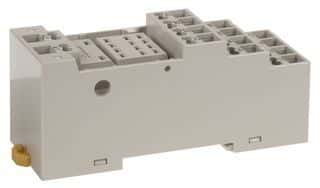

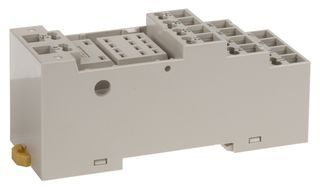

Product Images
