Technical Specifications
Onsemi 1.5KE150A technical specifications.
General
| Package/Case | DO-201AD |
| Clamping Voltage | 207V |
| Direction | Unidirectional |
| Min Breakdown Voltage | 143V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 7.2A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Voltage | 128V |
| Packaging | Bulk |
| Peak Pulse Current | 7.2A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 128V |
| RoHS Compliant | Yes |
| Series | 1N6267A |
| Termination | Axial |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1.5KE150A Datasheet
Download the complete datasheet for Onsemi 1.5KE150A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

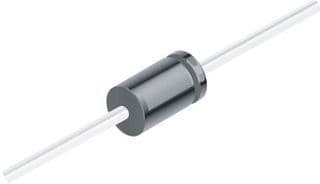

Product Images
