Unidirectional Zener Transient Voltage Suppressor (TVS) diode in an SMC package, offering 1.5kW peak pulse power and 49A peak pulse current. Features a 18.8V reverse standoff voltage, 20.9V to 23.1V breakdown voltage range, and a 30.6V clamping voltage. Designed for ESD protection with a maximum reverse leakage current of 5µA. Operates across a wide temperature range of -65°C to 150°C, with RoHS and Halogen-free compliance.
PackageSMC
Voltage Rating3.5V
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Onsemi 1.5SMC22AT3G technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 30.6V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.095inch |
| Lead Free | Lead Free |
| Length | 0.279inch |
| Max Breakdown Voltage | 23.1V |
| Min Breakdown Voltage | 20.9V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 49A |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 18.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 49A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 18.8V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| Width | 0.24inch |
| Working Voltage | 3.5V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1.5SMC22AT3G Datasheet
Download the complete datasheet for Onsemi 1.5SMC22AT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

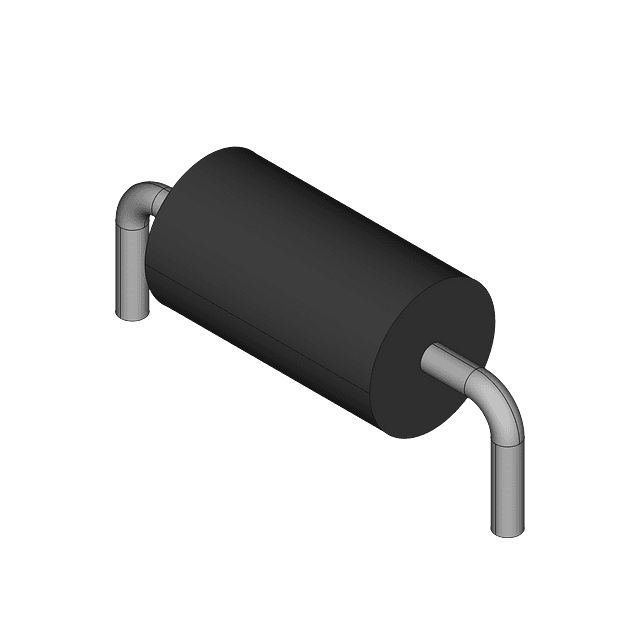

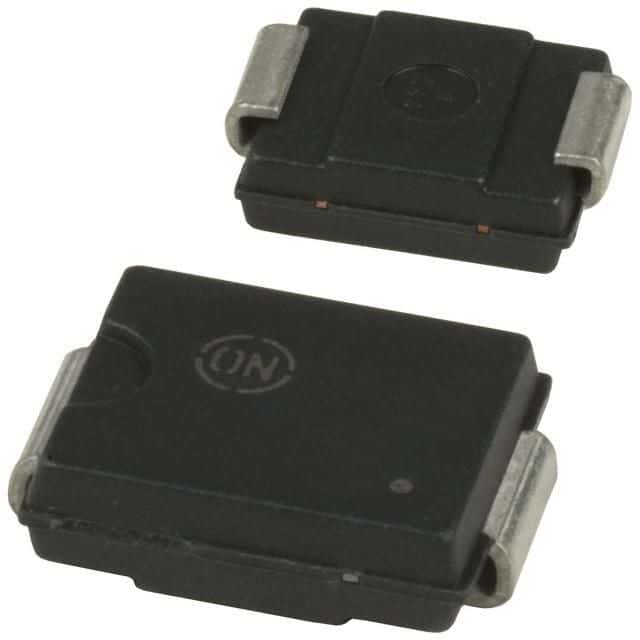

Product Images
