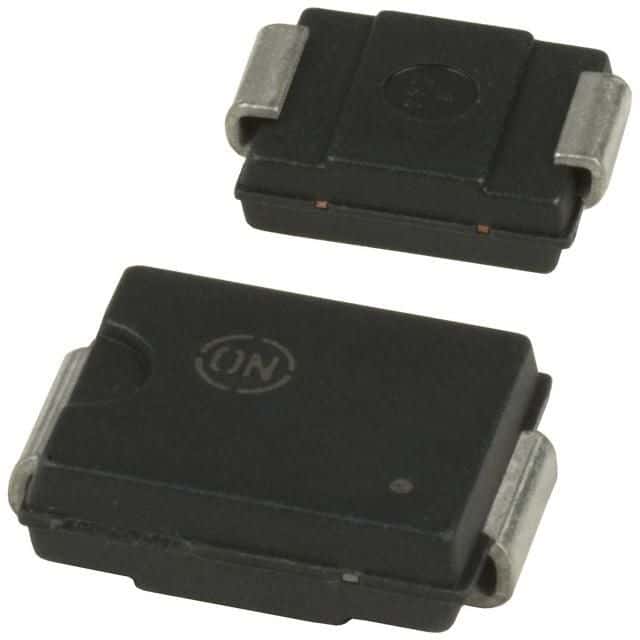

Unidirectional Transient Voltage Suppressor (TVS) diode with a 30V DC rated voltage and 25.6V reverse standoff voltage. Features a 1.5kW peak pulse power rating, 36A peak pulse current, and 41.4V clamping voltage. Designed for surface mount installation in an SMC package, offering ESD protection and operating across a -65°C to 150°C temperature range. This RoHS compliant component is suitable for automotive applications.
PackageSMC
Voltage Rating25.6V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1.5SMC30AT3G technical specifications.
General
Package/Case
SMC
Clamping Voltage
41.4V
Clamping Voltage-Max
41.4V
Depth
5.84mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Halogen Free
Halogen Free
Height
0.095inch
Lead Free
Lead Free
Leakage Current
5uA
Length
6.86mm
Max Breakdown Voltage
31.5V
Min Breakdown Voltage
28.5V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Reverse Leakage Current
5uA
Max Surge Current
36A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
25.6V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
36A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
28.5V
Reverse Standoff Voltage
25.6V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Termination
SMD/SMT
DC Rated Voltage
30V
Width
0.24inch
Working Voltage
25.6V
Compliance
RoHS
Compliant
