Unidirectional Zener Transient Voltage Suppressor (TVS) diode in SMC package, offering 1.5kW peak pulse power and 143A peak pulse current. Features a 6.8V DC rated voltage, 5.81V reverse standoff voltage, and 6.45V reverse breakdown voltage. Clamping voltage is 10.5V with a maximum leakage current of 1mA and 5uA max reverse leakage. Operating temperature range from -65°C to 150°C, with ESD protection and RoHS compliance.
PackageSMC
Current Rating143A
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Onsemi 1.5SMC6.8AT3G technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 10.5V |
| Clamping Voltage-Max | 10.5V |
| Current Rating | 143A |
| Depth | 5.84mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 2.41mm |
| Lead Free | Lead Free |
| Leakage Current | 1mA |
| Length | 6.86mm |
| Max Breakdown Voltage | 71.4V |
| Min Breakdown Voltage | 64.6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 143A |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 143A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6.45V |
| Reverse Standoff Voltage | 58.1V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| DC Rated Voltage | 6.8V |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1.5SMC6.8AT3G Datasheet
Download the complete datasheet for Onsemi 1.5SMC6.8AT3G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

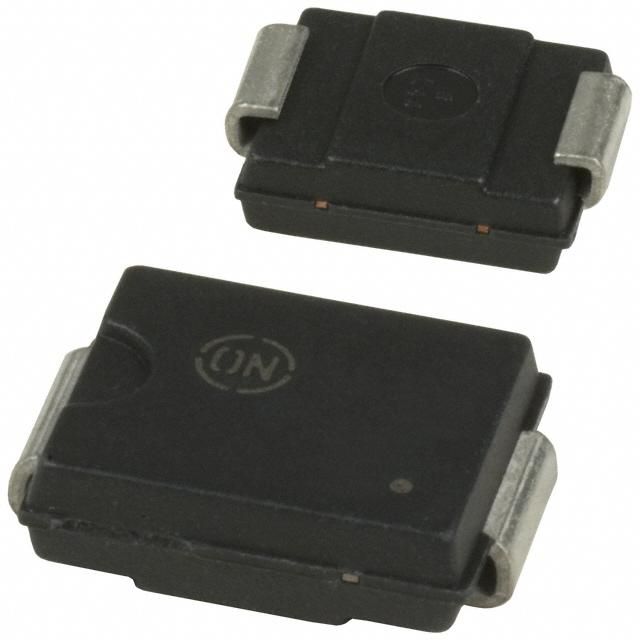

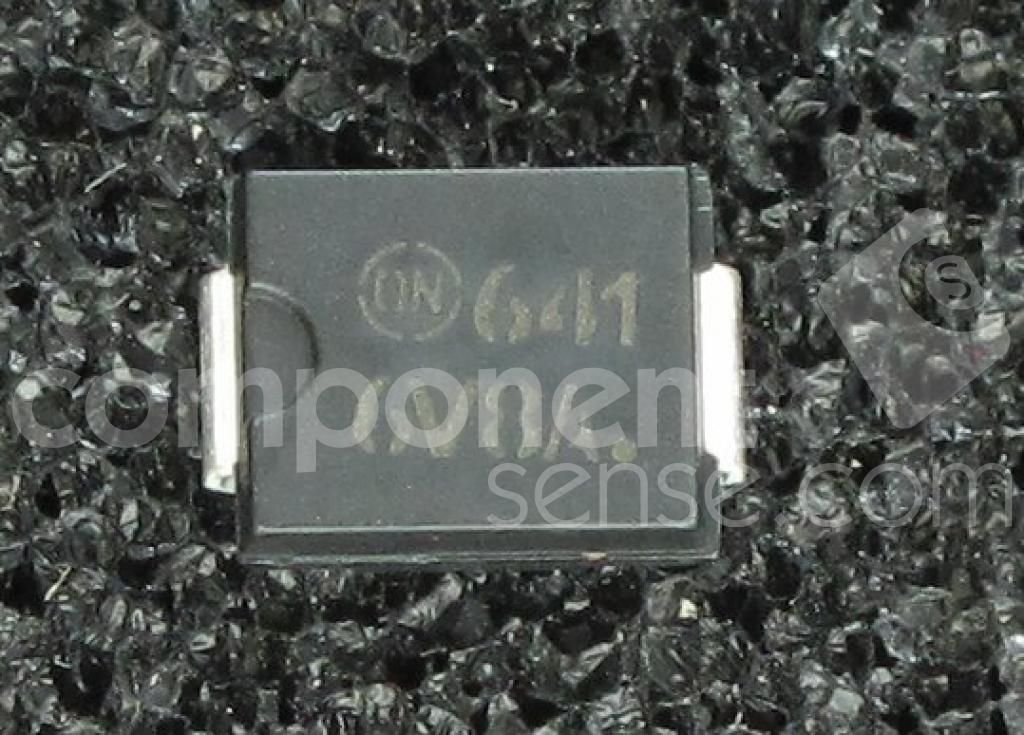

Product Images
