This 6-bit translator IC features a 1-channel, 8-circuit design with a maximum supply voltage of 5.5V and a minimum supply voltage of 4.5V. It operates within a temperature range of 0°C to 85°C and is designed for surface mount applications. The device has a propagation delay of 2.7ns and a turn-on delay time of 2.7ns. It is not RoHS compliant and is available in a package quantity of 35 units per rail/Tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 100324QC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

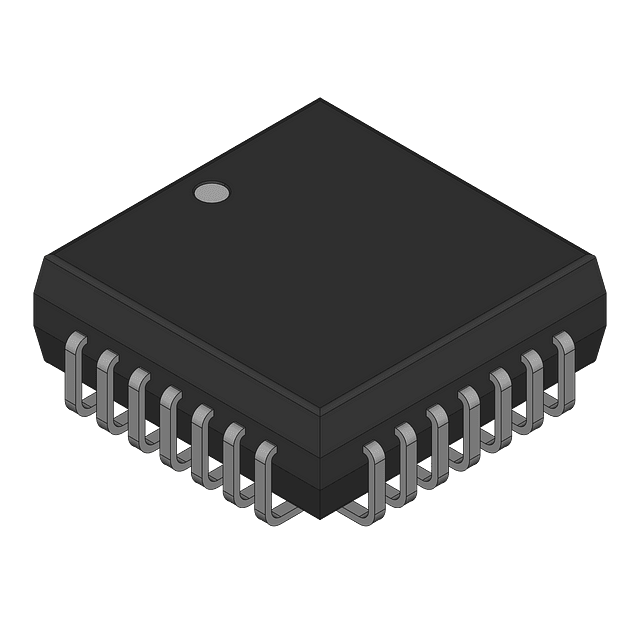

| Package/Case | PLCC |
| High Level Output Current | -50mA |
| Lead Free | Lead Free |
| Logic Function | Translator |
| Low Level Output Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Channels | 1 |
| Number of Circuits | 8 |
| Operating Supply Voltage | 5V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Propagation Delay | 2.7ns |
| RoHS Compliant | No |
| Technology | ECL |
| Turn-On Delay Time | 2.7ns |
| RoHS | Not Compliant |
Download the complete datasheet for Onsemi 100324QC to view detailed technical specifications.
