General purpose rectifier diode with a 1A forward current and 50V reverse voltage rating. Features a 30A peak non-repetitive surge current capability and 3W power dissipation. Encased in a DO-41 package with tin, matte contact plating, this through-hole component operates from -55°C to 175°C. It offers a low 5uA reverse current and 15pF capacitance.
PackageDO-41
Capacitance15pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 1N4001 technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 15pF |
| Package/Case | DO-41 |
| Contact Plating | Tin, Matte |
| Current Rating | 1A |
| Diameter | 2.72mm |
| Element Configuration | Single |
| Forward Current | 1A |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 50V |
| Max Surge Current | 30A |
| Mount | Through Hole |
| Output Current | 1A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Power Dissipation | 3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 50V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
| Weight | 0.245g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N4001 Datasheet
Download the complete datasheet for Onsemi 1N4001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

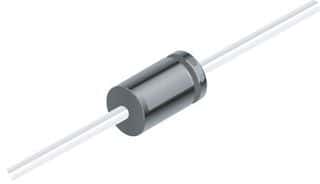

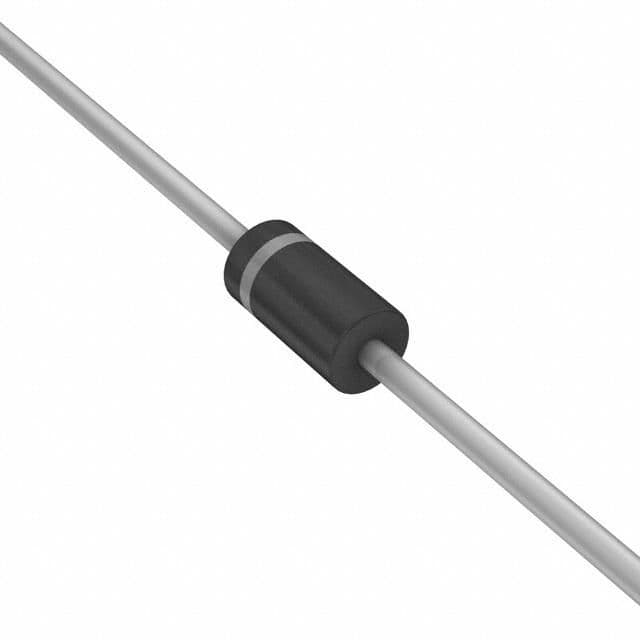

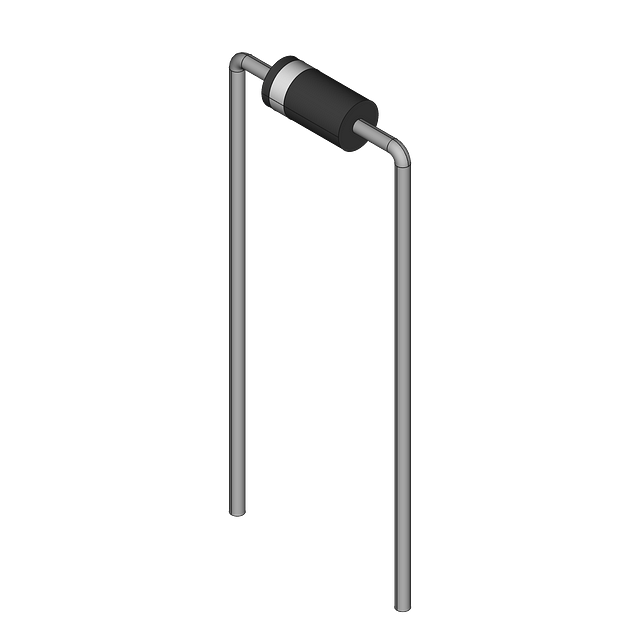

Product Images
