General purpose rectifier diode with a 1A average rectified current and 100V repetitive reverse voltage. Features a 1A forward current, 30A maximum surge current, and 3W power dissipation. This single element diode is housed in a DO-41 axial package with tin, matte contact plating and supports through-hole mounting. Operating temperature range is -55°C to 175°C, with a low 5uA maximum reverse current.
PackageDO-41
Capacitance15pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 1N4002 technical specifications.
General
Average Rectified Current
1A
Capacitance
15pF
Package/Case
DO-41
Contact Plating
Tin, Matte
Current Rating
1A
Diameter
2.72mm
Element Configuration
Single
Forward Current
1A
Height
2.72mm
Lead Free
Lead Free
Length
5.2mm
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
100V
Max Surge Current
30A
Mount
Through Hole
Output Current
1A
Package Quantity
1000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Power Dissipation
3W
Reach SVHC Compliant
No
Reverse Voltage
100V
RoHS Compliant
Yes
Termination
Axial
DC Rated Voltage
100V
Weight
0.245g
Width
2.72mm
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N4002 Datasheet
Download the complete datasheet for Onsemi 1N4002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

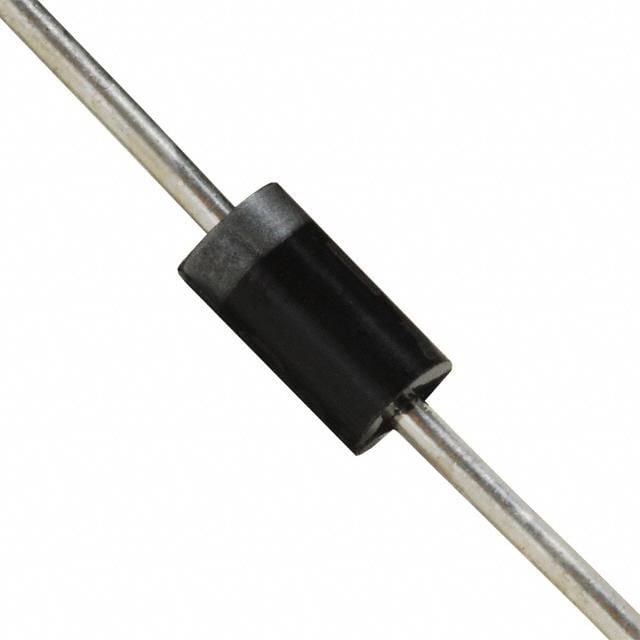

Product Images
