General purpose rectifier diode with a 600V repetitive reverse voltage and 1A average rectified current. Features a 2.7mm diameter and 5.2mm height within a DO-41 axial lead package. Offers a 30A peak non-repetitive surge current capability and operates across a wide temperature range from -65°C to 175°C. This RoHS compliant component is supplied in 5000-unit tape and reel packaging.
PackageDO-41
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi 1N4005RLG technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-41 |
| Current Rating | 1A |
| Diameter | 2.7mm |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 30A |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N4005RLG Datasheet
Download the complete datasheet for Onsemi 1N4005RLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

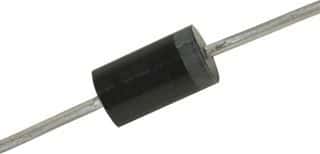

Product Images
