High conductance, fast switching diode with a 4ns reverse recovery time. Features a 200mA average rectified current and 300mA forward current rating. Designed for through-hole mounting in a DO-35 package, this single element diode operates from -65°C to 175°C with a maximum reverse voltage of 100V. Offers a low 4pF capacitance and a 4A peak non-repetitive surge current. Lead-free and RoHS compliant.
PackageDO-35
Capacitance4pF
Current Rating200mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi 1N4148_T50A technical specifications.
General
| Average Rectified Current | 200mA |
| Capacitance | 4pF |
| Package/Case | DO-35 |
| Current Rating | 200mA |
| Diameter | 1.91mm |
| Element Configuration | Single |
| Forward Current | 300mA |
| Lead Free | Lead Free |
| Length | 4.56mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Voltage (DC) | 100V |
| Mount | Through Hole |
| Output Current | 200mA |
| Package Quantity | 5000 |
| Packaging | Ammo Pack |
| Peak Non-Repetitive Surge Current | 4A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
| Weight | 80g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 1N4148_T50A Datasheet
Download the complete datasheet for Onsemi 1N4148_T50A to view detailed technical specifications.
No datasheet is available for this part.

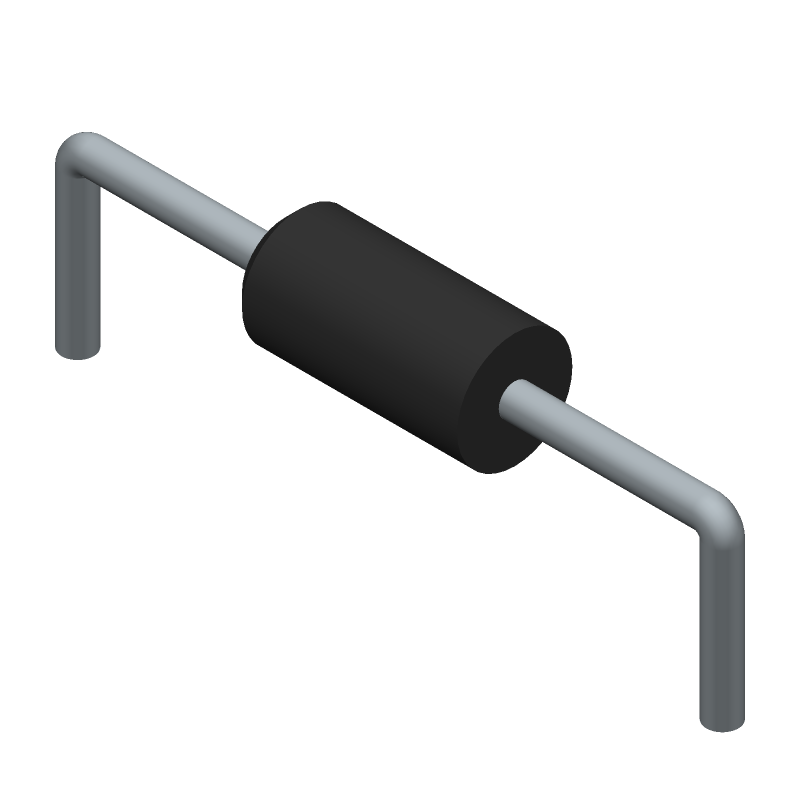

Product Images
