10V Zener diode with 1W power dissipation and 5% voltage tolerance. Features a DO-41 glass package, through-hole mounting, and tin-matte contact plating. Operates across a wide temperature range from -65°C to 200°C, with a maximum reverse leakage current of 10µA and a Zener current of 25mA. Supplied in tape and reel packaging with 3000 units per reel.
PackageDO-41
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Onsemi 1N4740ATR technical specifications.
General
Package/Case
DO-41
Contact Plating
Tin, Matte
Diameter
2.72mm
ESD Protection
No
Impedance
7R
Lead Free
Lead Free
Length
5.2mm
Material
Glass
Max Operating Temperature
200°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Max Reverse Leakage Current
10uA
Mount
Through Hole
Output Current
1A
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
DC Rated Voltage
10V
Voltage Tolerance
5%
Weight
0.245g
Zener Current
25mA
Zener Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Onsemi 1N4740ATR Datasheet
Download the complete datasheet for Onsemi 1N4740ATR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

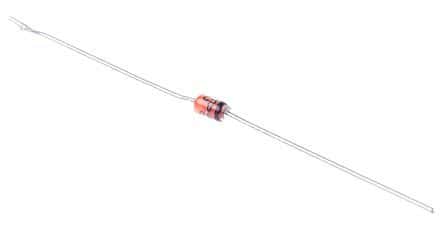

Product Images
