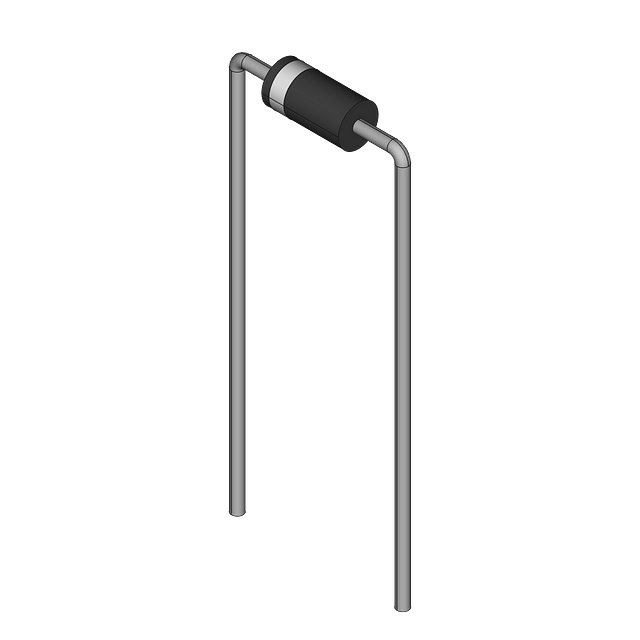

This hermetically sealed glass zener diode features a working voltage of 47V with a tolerance of 5%. It has a maximum power dissipation of 1W and a maximum reverse current of 5uA. The diode is packaged in a DO-41-2 case and is suitable for through-hole mounting. It operates over a temperature range of -65°C to 200°C and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi 1N4756A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DO-41-2 |
| Impedance | 80R |
| Lead Free | Lead Free |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1W |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 47V |
| Voltage Tolerance | 5% |
| Weight | 0.245g |
| Working Voltage | 47V |
| Zener Current | 5.5mA |
| Zener Voltage | 47V |
| RoHS | Compliant |
